BLACKHOLE 存储引擎充当一个 “黑洞”，它接受数据但会丢弃数据，而不存储数据。检索总是返回空结果：The BLACKHOLE storage engine acts as a “black hole” that accepts data but throws it away and does not store it. Retrievals always return an empty result:

mysql> CREATE TABLE test(i INT, c CHAR(10)) ENGINE = BLACKHOLE;
Query OK, 0 rows affected (0.03 sec)

mysql> INSERT INTO test VALUES(1,'record one'),(2,'record two');
Query OK, 2 rows affected (0.00 sec)
Records: 2  Duplicates: 0  Warnings: 0

mysql> SELECT * FROM test;
Empty set (0.00 sec)

如果你从源码构建 MySQL，要启用 BLACKHOLE 存储引擎，请使用 CMake 并传递 -DWITH_BLACKHOLE_STORAGE_ENGINE 选项。To enable the BLACKHOLE storage engine if you build MySQL from source, invoke CMake with the -DWITH_BLACKHOLE_STORAGE_ENGINE option.

要查看 BLACKHOLE 引擎的源代码，请在 MySQL 源代码分发版的 sql 目录中查找。To examine the source for the BLACKHOLE engine, look in the sql directory of a MySQL source distribution.

当你创建一个 BLACKHOLE 表时，服务器会在全局数据字典中创建表定义。该表没有关联的文件。When you create a BLACKHOLE table, the server creates the table definition in the global data dictionary. There are no files associated with the table.

BLACKHOLE 存储引擎支持各种索引。也就是说，你可以在表定义中包含索引声明。The BLACKHOLE storage engine supports all kinds of indexes. That is, you can include index declarations in the table definition.

最大键长度为 3072 字节。The maximum key length is 3072 bytes.

BLACKHOLE 存储引擎不支持分区。The BLACKHOLE storage engine does not support partitioning.

你可以使用 BLACKHOLE 语句检查 SHOW ENGINES 存储引擎是否可用。You can check whether the BLACKHOLE storage engine is available with the SHOW ENGINES statement.

插入到 BLACKHOLE 表的数据不会被存储，但如果启用了基于语句的二进制日志，SQL 语句会被记录并复制到从服务器上。这可以用作中继或过滤机制。Inserts into a BLACKHOLE table do not store any data, but if statement based binary logging is enabled, the SQL statements are logged and replicated to replica servers. This can be useful as a repeater or filter mechanism.

假设您的应用程序需要副本端的过滤规则，但先将所有二进制日志数据传输到副本会导致流量过大。在这种情况下，可以在复制源服务器上设置一个“虚拟”副本进程，其默认存储引擎为BLACKHOLE，如下所示：Suppose that your application requires replica-side filtering rules, but transferring all binary log data to the replica first results in too much traffic. In such a case, it is possible to set up on the replication source server a “dummy” replica process whose default storage engine is BLACKHOLE, depicted as follows:

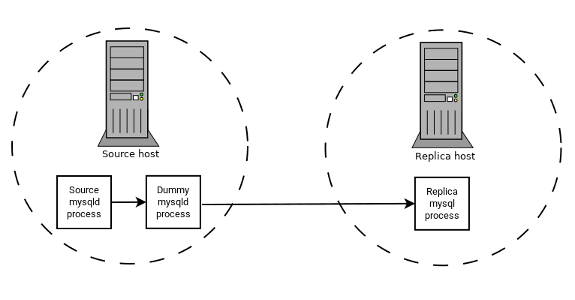

图 18.1 使用 BLACKHOLE 进行过滤的复制Figure 18.1 Replication using BLACKHOLE for Filtering

源写入其二进制日志。“dummy” mysqld 进程充当副本，应用所需组合的 replicate-do-* 和 replicate-ignore-* 规则，并写入其自己的新过滤二进制日志。（参见 第 19.1.6 节，“复制和二进制日志选项及变量”。）此过滤日志提供给副本。The source writes to its binary log. The “dummy” mysqld process acts as a replica, applying the desired combination of replicate-do-* and replicate-ignore-* rules, and writes a new, filtered binary log of its own. (See Section 19.1.6, “Replication and Binary Logging Options and Variables”.) This filtered log is provided to the replica.

这个虚拟进程实际上并不存储任何数据，因此在复制源服务器上运行额外的 mysqld 进程时几乎不会产生处理开销。这种类型的设置可以通过增加更多副本来重复进行。The dummy process does not actually store any data, so there is little processing overhead incurred by running the additional mysqld process on the replication source server. This type of setup can be repeated with additional replicas.

INSERT 触发器在 BLACKHOLE 表中可以按预期工作。然而，因为 BLACKHOLE 表实际上不存储任何数据，UPDATE 和 DELETE 触发器不会被激活：触发器定义中的 FOR EACH ROW 子句不适用，因为没有行。INSERT triggers for BLACKHOLE tables work as expected. However, because the BLACKHOLE table does not actually store any data, UPDATE and DELETE triggers are not activated: The FOR EACH ROW clause in the trigger definition does not apply because there are no rows.

BLACKHOLE 存储引擎的其他可能用途包括：Other possible uses for the BLACKHOLE storage engine include:

BLACKHOLE 引擎是事务感知的，这意味着已提交的事务会写入二进制日志，而回滚的事务则不会。The BLACKHOLE engine is transaction-aware, in the sense that committed transactions are written to the binary log and rolled-back transactions are not.

Blackhole 引擎与自增列Blackhole Engine and Auto Increment Columns

BLACKHOLE 引擎是一个无操作引擎。对使用 BLACKHOLE 的表执行的任何操作都没有效果。在考虑自增主键列的行为时应牢记这一点。该引擎不会自动增加字段值，也不会保留自增字段状态。这在复制中具有重要影响。The BLACKHOLE engine is a no-op engine. Any operations performed on a table using BLACKHOLE have no effect. This should be borne in mind when considering the behavior of primary key columns that auto increment. The engine does not automatically increment field values, and does not retain auto increment field state. This has important implications in replication.

考虑以下复制场景，其中满足以下三个条件：Consider the following replication scenario where all three of the following conditions apply:

在这种情况下，复制会因主键列重复条目错误而失败。In this scenario replication fails with a duplicate entry error on the primary key column.

在基于语句的复制中，事件上下文中 INSERT_ID 的值始终相同。因此，复制因为尝试插入具有主键列重复值的行而失败。In statement based replication, the value of INSERT_ID in the context event is always the same. Replication therefore fails due to trying insert a row with a duplicate value for a primary key column.

在基于行的复制中，引擎返回的行值在每次插入时总是相同的。这会导致副本尝试使用主键列的相同值重放两个插入日志条目，从而导致复制失败。In row based replication, the value that the engine returns for the row always be the same for each insert. This results in the replica attempting to replay two insert log entries using the same value for the primary key column, and so replication fails.

列过滤Column Filtering

使用基于行的复制时（binlog_format=ROW），支持副本表缺少最后几列的情况，如第 19.5.1.9 节，“源和副本表定义不同的复制”所述。When using row-based replication, (binlog_format=ROW), a replica where the last columns are missing from a table is supported, as described in the section Section 19.5.1.9, “Replication with Differing Table Definitions on Source and Replica”.

此过滤在副本端工作，即在列被过滤掉之前，它们会被复制到副本中。有至少两种情况不希望将列复制到副本：This filtering works on the replica side, that is, the columns are copied to the replica before they are filtered out. There are at least two cases where it is not desirable to copy the columns to the replica:

源列过滤可以使用BLACKHOLE引擎实现。这与源表过滤的实现方式类似——使用BLACKHOLE引擎以及--replicate-do-table或--replicate-ignore-table选项。Source column filtering can be achieved using the BLACKHOLE engine. This is carried out in a way similar to how source table filtering is achieved - by using the BLACKHOLE engine and the --replicate-do-table or --replicate-ignore-table option.

源的设置为：The setup for the source is:

CREATE TABLE t1 (public_col_1, ..., public_col_N,
                 secret_col_1, ..., secret_col_M) ENGINE=MyISAM;

受信任副本的设置为：The setup for the trusted replica is:

CREATE TABLE t1 (public_col_1, ..., public_col_N) ENGINE=BLACKHOLE;

不受信任副本的设置为：The setup for the untrusted replica is:

CREATE TABLE t1 (public_col_1, ..., public_col_N) ENGINE=MyISAM;
